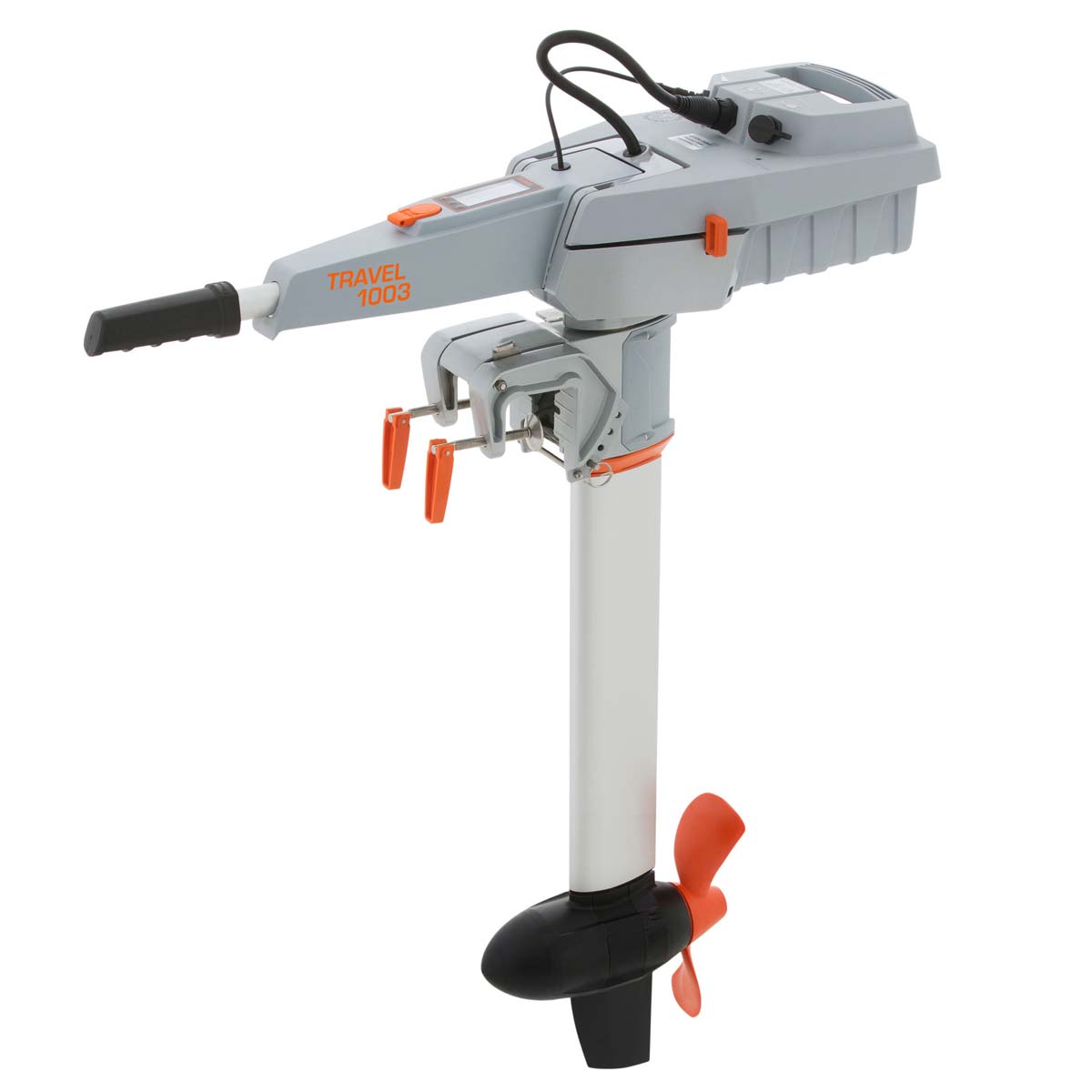

Torqeedo Travel 1003 CS

Home
OUTBOARD ENGINE
Torqeedo Travel 1003 CS

Home
ELECTRIC OUTBOARD ENGINE
Torqeedo Travel 1003 CS

Torqeedo Travel 1003 CS

Price:

US $1,265.00

Brand:

TORQEEDO

Condition:

New

Shipping:

Free Shipping

Product Description

Can do everything that a 3 HP petrol outboard can, plus it’s environmentally friendlier, quieter, lighter and more convenient
On-board computer with GPS-based calculation of remaining range
Solar rechargeable – including during the voyage
Can be easily dismantled for transport and space-saving storage
A clean affair: no matter how or where you store your Travel, there’s no risk of leakage or petrol smells
Stepless forward/reverse drive
Manual tilting device with grounding protection
4-step manual trim device
Completely waterproof (IP67)
Tiller control
Integrated battery with 915 Wh Li-Ion
Total weight 14.9 kg (S) / 15.5 kg (L)
Shaft length: short 62.5 cm / long 75 cm

Item number: 1149-00 | EAN: 4260113694473
Equipment included: Travel 1003 C with battery and charger
Warranty: 2 years

Range

Travel 1003 C with Integrated Battery (29.6 V / 31 Ah)


	Speed in knots (km/h)*	Range in sm (km)*	Running time in hours:
Slow	2.0 (3.7)	35.0 (64.8)	17:30
Half throttle	3.0 (5.5)	18.0 (33.3)	06:00
Full throttle	5.0 (9.2)	4.6 (8,4)	00:55

* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.

Information on range and speed

For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power.

And vice-versa, a small reduction in speed is enough to increase the achievable range substantially.

The Torqeedo Travel's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.

Specifications

Technical Data Travel

	Travel 1003 C
Input power in watts	1000
Propulsive power in watts	480
Comparable petrol outboards (propulsive power)	3 HP
Comparable petrol outboards (thrust)	4 HP
Maximum overall efficiency in %	48
Static thrust in lbs*	68
Integrated battery	915 Wh Li-Ion
Nominal voltage	29.6
Final charging voltage	33.6
Total weight in kg	14.9(S) / 15.5 (L)
Motor weight without battery in kg	8.9(S) / 9.5(L)
Weight of integrated battery	6.0
Shaft length in cm	62.5(S) / 75(L)
Standard propeller v = speed in km/h at p = power in watts	v9/p790
Alternative propeller options
Maximum propeller speed in rpm	1,200
Control	Tiller
Steering	360° lockable
Tilting device	Manual with grounding protection, 78°
Tilt angle	70°
Trim device	Manual, 4-step
Integrated on-board computer	Yes
Stepless forward/reverse drive	Yes

* Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.
