Product Description

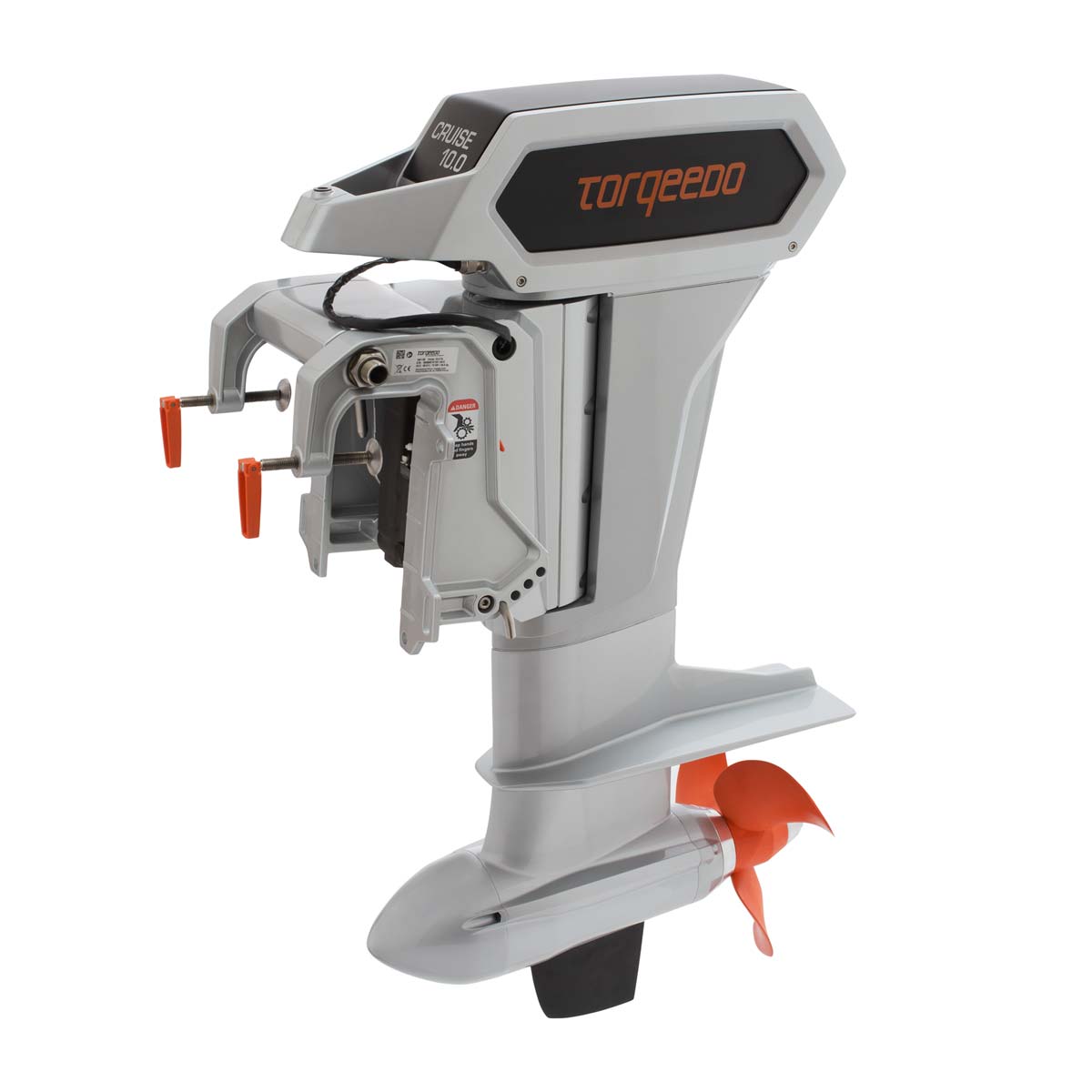

12kW peak output, 10kW continuous output – powerful propulsion comparable to a 20 HP combustion engine
Intelligent on-board computer and the full convenience of a Torqeedo electric drive system
Electric tilting device for ease of operation
Easy handling thanks to low-voltage level (48 Volt)
Very robust design – corrosion-protected, sea water-capable and completely waterproof (IP67)
Slimline construction – elegant and modern
Versions: short shaft S: 38.5cm shaft length, long shaft L: 51.2cm shaft length, extra long shaft XL: 63.9cm shaft length
Weight in kg (w/o cables & main switch): 59.8 (S), 61.3 (L), 62.5 (XL)

Ordering information

Item number: 1240-00 | EAN: 4260113694077

Equipment included: Throttle with integrated information display including data cable (5m), magnetic kill switch, 70 mm² battery cable with main switch (4.5m), connecting rod for remote steering, standard prop v22/p10k and sacrificial anodes (Al)
Warranty: 2 years for non-commercial use

Cruise 10.0 R

The new flagship of the Cruise line: The new Cruise 10.0 not only has an impressive appearance, it also delivers impressive performance. High-tech from the shaft head to the fin – and emission-free. Make way for the Cruise 10.0!

The Cruise 10.0 is comparable to a 20 HP petrol outboard and can be easily mounted on your boat with a couple of tools.

Its power supply requires at least two (Power 48-5000) or four lithium batteries (Power 24-3500)

Cruise 10.0 R - Benefits:

12 kW peak power, 10 kW continuous power – powerful propulsion like a 20 HP combustion engine
Simple handling thanks to voltage level of 48 V
We recommend the Cruise 10.0 for dinghies and sailboats up to 10 tons.
Remote steering connector option, comes with remote throttle.
Intelligent on-board computer and all of the convenience of a Torqeedo electric drive system
Very robust design – protected from corrosion, saltwater-capable, and completely waterproof (IP67)
Low-profile design – elegant and modern …

Range

Cruise 10.0 with 2 x Power 48-5000

Speed in knots (km/h)* Range in nm (km)* Running time in hours:

Slow 4.2 (7.8) 32,0 (60,0) 06:00

Full throttle 14,0 (26.5) 14,0 (26.5) 01:00

* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.
Information on range and speed
For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power. And vice-versa, a small reduction in speed is enough to increase the achievable range substantially. The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.

	Speed in knots (km/h)*	Range in nm (km)*	Running time in hours:
Slow	4.2 (7.8)	32,0 (60,0)	06:00
Full throttle	14,0 (26.5)	14,0 (26.5)	01:00

Specifications

Technical Data Cruise 10.0 R


	Cruise 10.0 R
Input power in watts	10,000
Propulsive power in watts	5,600
Comparable petrol outboards (propulsive power)	20 HP
Comparable petrol outboards (thrust)	25 HP
Maximum overall efficiency in %	56
Static thrust in lbs*	≤ 405
Integrated battery	-
Nominal voltage	48
Final charging voltage	-
Weight in kg (w/o cables & main switch)	59.8 (S), 61.3 (L), 62.5 (XL)
Motor weight without battery in kg	-
Weight of integrated battery	-
Shaft length in cm	38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller v = speed in km/h at p = power in watts	v22/p10k
Alternative propeller options	v32/p10k & v15/p10k
Maximum propeller speed in rpm	1,400
Control	Remote throttle
Steering	Provision to connect to standard remote steering
Tilting device	Electrohydraulic tilt device with overload protection.
Tilt angle	+-45°
Trim device	Manual, 4-step
Integrated on-board computer	Yes
Stepless forward/reverse drive	Yes

* Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.
