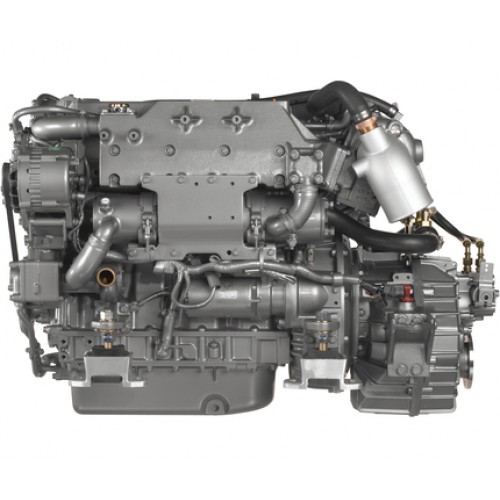

Yanmar 4LHA-STP Marine Diesel Engine Inboard 240 HP 4 Stroke Vertical Water Cooled Diesel Inboard

LH Series 118–177kW (116–240HP) Tough, reliable, compact and with outstanding power-to-weight benefits, these four-cylinder direct injection Yanmars in the LH Series include sterndrive models. The turbocharger has a wastegate boost compensator to improve acceleration still further. LH Series 4LHAM-STP (240HP/177kW) Tough and dependable high-output four-cylinder diesel, turbocharged and aftercooled. Develops 240HP (177kW) at 3,300 rpm. Supplied as bob-tail unit so that you can choose your transmission type

Specifications:

Configuration: 4-Stroke, vertical, water-cooled diesel engine
Maximum output at crankshaft: * 177 kW@3300 rpm [240 mhp@3300 rpm] ** 169 kW@3300 rpm [230 mhp@3300 rpm]
Displacement: 3.455 ltr [211 cu in]
Bore x stroke: 100 mm x 110 mm [3.94 in x 4.33 in]
Cylinders: 4 in line
Combustion system: Direct injection
Aspiration: Turbocharged with intercooler
Starting system: Electrical starting 12V
Alternator: 12V - 80A
Cooling system: Fresh water cooling by centrifugal fresh water pump and rubber impeller seawater pump
Lubrication system: Enclosed, forced lubricating system
Direction of rotation [crankshaft]: Counterclockwise viewed from flywheel side
Dry weight without gear: 365 kg [805 lbs]
Environmental: EU: RCD BSO II EMC SOLAS MED 96/98/EC
Engine mounting: Rubber type flexible mounting
Factory Warranty: 2 Years

Package Include:

Sensor for various panels
Exhaust/water mixing elbow [L-type
Alternator 12V - 80A
Flexible mounts
New C-type instrument panel
Dual station Y harness
Dipstick for opposite side
Air venting device for cooling water tank
Choice Of Transmissions: KMH50A or ZF63A
