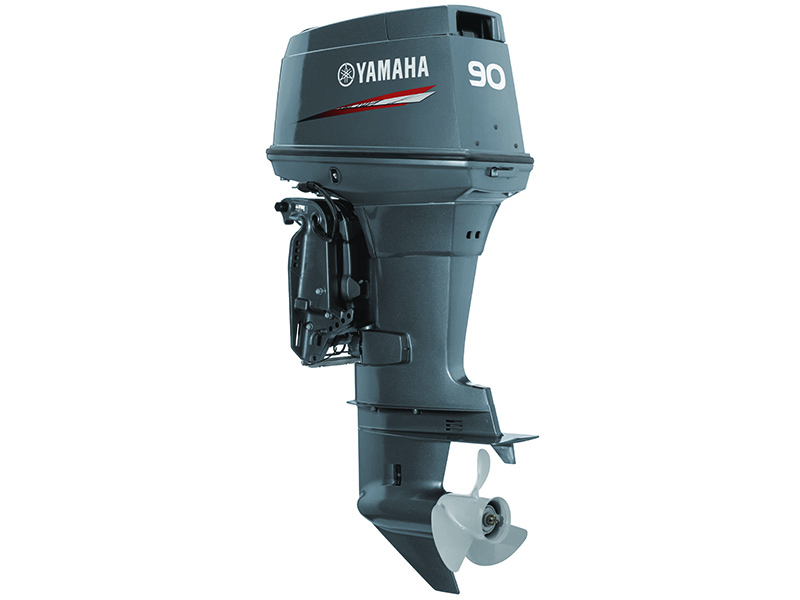

Yamaha 90AETOL | 90hp 2-Stroke Outboard Engine Long Shaft

Here’s a range that offers terrific, versatile engines with unbeatable value for money, outstanding power to weight ratios and world renowned reliability. Whether it’s cruising down the river to your favourite fishing spot, water skiing with the kids or chasing some serious fish in open water there’s an engine in this range perfect for you.

Our proven three cylinder design with loop charging fuel intake delivers great fuel economy and smooth, responsive acceleration.

Excellent reliability

CDI ignition provides automatic spark advance to provide maximum power throughout the whole RPM range
Loop charging boosts power and fuel efficiency
Precision Blend oil injection system (on applicable models) guarantees the optimum smooth running, excellent durability and eliminates the need for pre-mixing two stroke fuel.

Sharp responsive power
Three cylinder design has stood the test of time and proven to be hugely successful with a range of boat owners.

Available in:

90AETOL - Electric Start,Tilt System - Electric Start, Precision Blend™ Oil Injection, Transom height - Long
90AETOX - Electric Start,Tilt System - Electric Start, Precision Blend™ Oil Injection, Transom height - Extra-Long

General Features:

Precision blend
Steering arm
PT&T
Fresh water flush fixture
Engine mounted oil reservoir
Price does not include a trim limiter(if required)
Specifications
Engine Type    2-Stroke, In-line 3
Displacement    1140.0 cc
Bore x Stroke    82 x 72 mm
Recommended Max RPM    5000-5500
Lubrication System    Oil injection
Fuel Management    Carb
Ignition    CDI
Starter System    Electric
Alternator Output    12V - 10A with rectifier regulator
Trim & Tilt Method    Power trim & tilt
Digital Gauges    Standard
Gear Ratio    2.00 : 1

Dimensions:

Transom Length
90AETOL : 520 mm (20.5 in)
90AETOX : 647 mm (25.5 in)

Weight:

90AETOL : 120 kg
90AETOX : 123 kg

CDI-E: CDI-Electronic Automatic
CDI-M: CDI-Microcomputer
TCI: Transistor Controlled Ignition

Specifications:

Engine Features: 3-cylinder. 2-Stroke
Displacement (cc): 1140
Compression ratio: 5.9
Power (hp): 90
Bore x Stroke (mm): 82.0 x 72.0
Range max engine speed: 4500-5500 rpm
Ignition System: CDI
Purge: Simultaneous Charging
Power system: 3 carburetors
Fuel tank (L): 24
Max. fuel consumption (l / h): 34.5
Lubrication system: oil injection
The proportion of the fuel-oil mixture: X
Starter: electric
Control system: remote
Gear Shift: FNR
Gear Ratio: 2.0 (26/13)
Exhaust System: Through the hub of the propeller (JET system (Reactive))
Propeller drive gearing: spline connection
Transom engine height: L 521 mm (20.5 inches)
Dry weight with propeller: 120 kg
Trimming and tilting: wide-range tilt system
Cable lanyard: on the remote control
Motor deviation when moving in shallow water – yes
Alternator: 10 A
Rectifier-regulator: rectifier with regulator
Starter lock during reverse: on the remote control
Overheat alarm – yes
Speed ​​Limiter – Yes

Package Includes:

Flexible mounts
High-riser/water mixing elbow [instead of L-elbow]
New C-type instrument panel
Dual station Y harness
Dipstick for opposite side
Air venting device for cooling water tank
Sensor for various panels
Alternator 12V-80A
Lube oil pressure gauge
Jet Pump
