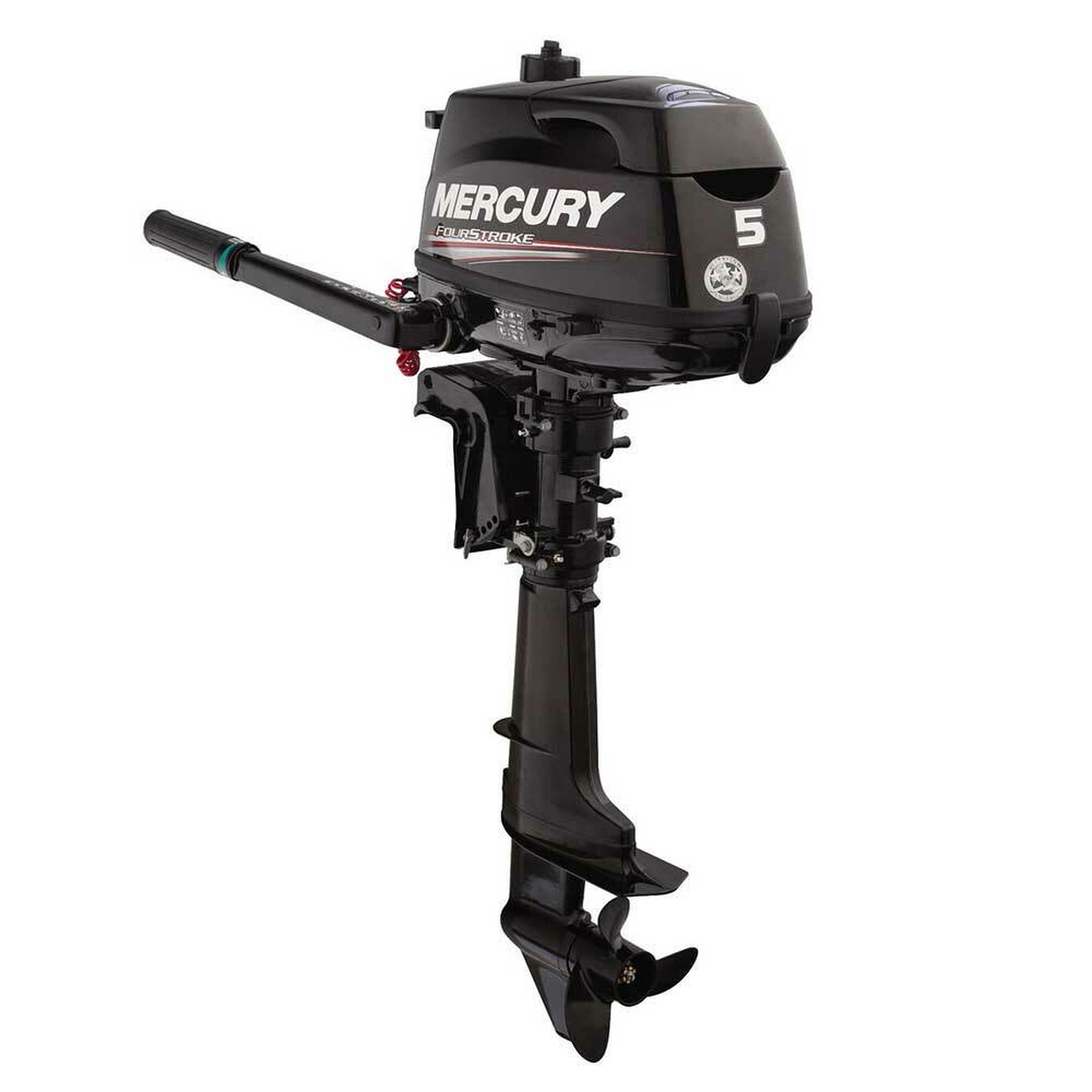

The Mercury 5 HP Outboard motor is perfect for powering small skiffs, jon boats and inflatable boats. The 55 lb. 5 HP outboard is also perfect for auxiliary power for your sailboat. Mercury Outboard motors are known for reliable, efficient power at an affordable price. A larger carburetor and propeller provide for the extra power you crave on the water. The Mercury 5 HP outboard model # 5MH is equipped with the 15 inch short shaft, an integrated gas tank, manual rope start, and forward, neutral and reverse shift. The Mercury Factory warranty begins on date of purchase.

Features:

Compact and Lightweight
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes
Forward-Neutral-Reverse Gear Shift
Adjustable Steering Tension Control
Forward Mounted Gear Shift Selector
Twist-Grip Throttle with Tension Control
Integrated Carry Handle
Thermostat Controlled Water Cooling
Shallow Water Drive; 6 Trim Positions
Quiet Through-Propeller-Hub Exhaust
1.15 Liter (.30 Gallon) Integral Fuel Tank
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner's Manual
Mercury Marine 3-Year Warranty

Specifications:

MODEL : 1FX5201EK
MODEL YEAR : 2020
SKU : 5MH-20
WEIGHT : 55.0 lb
MANUFACTURER : Mercury
COUNTRY OF MANUFACTURE : Japan
HORSEPOWER : 5hp
SHAFT LENGTH : 15" (Short)
STEERING : Tiller
STARTING : Manual
TRIM & TILT : Manual
FUEL DELIVERY : Carburetor
FUEL TANK : Internal
CYLINDER(S) : 1
DISPLACEMENT : 7.5/123
BORE AND STROKE : 2.32 x 1.77
FULL THROTTLE RPM RANGE : 4500-5500
IGNITION SYSTEM : CDI w/electric spark advance
INDUCTION SCAVENGING : OHV
VALVES PER CYLINDER : 2
FUEL TYPE : 87 Octane (up to 10% ethanol content)
FUEL TANK / FUEL LINE : 0.3 US Gallon (1.15 liter)
OIL TYPE : SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
OIL CAPACITY : 15 fl. Oz. (450 ml)
LUBRICATION : Pressurized wet sump
ALTERNATOR : Optional 12V 50W 4A (installation required)
COOLING SYSTEM : Water-Cooled, Thermostatically Controlled
SALTWATER RATED : Yes
GEAR RATIO : 2.15
GEAR SHIFT : Forward-Neutral-Reverse (forward mounted shift lever)
PROPELLER : 7.7" Diameter X 8.0" Pitch 3-Blade Aluminum

Package Included:

Fuel Tank
Quick Connect Fuel Line
Aluminum Propeller
Mercury 4-Stroke Oil
Owner's Manual & Tool Kit
Remote Control Box Kit Mercury Side Mount Trim & Tilt
Service Manual
Outboard Motor Cover
Single carburetor
Water Cooled
Integrated Carry Handle
Safety Lanyard Stop Switch
